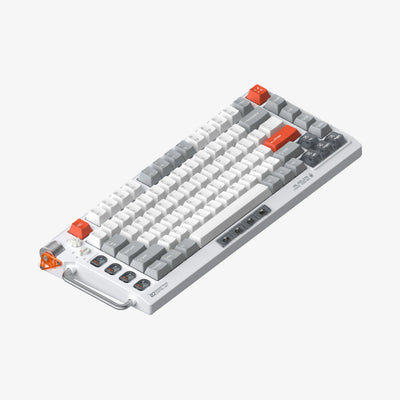

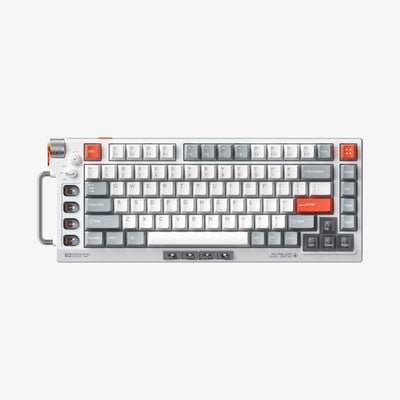

Field75 Hall Effects HE V2 75% Magnetic Mechanical Keyboard
Description

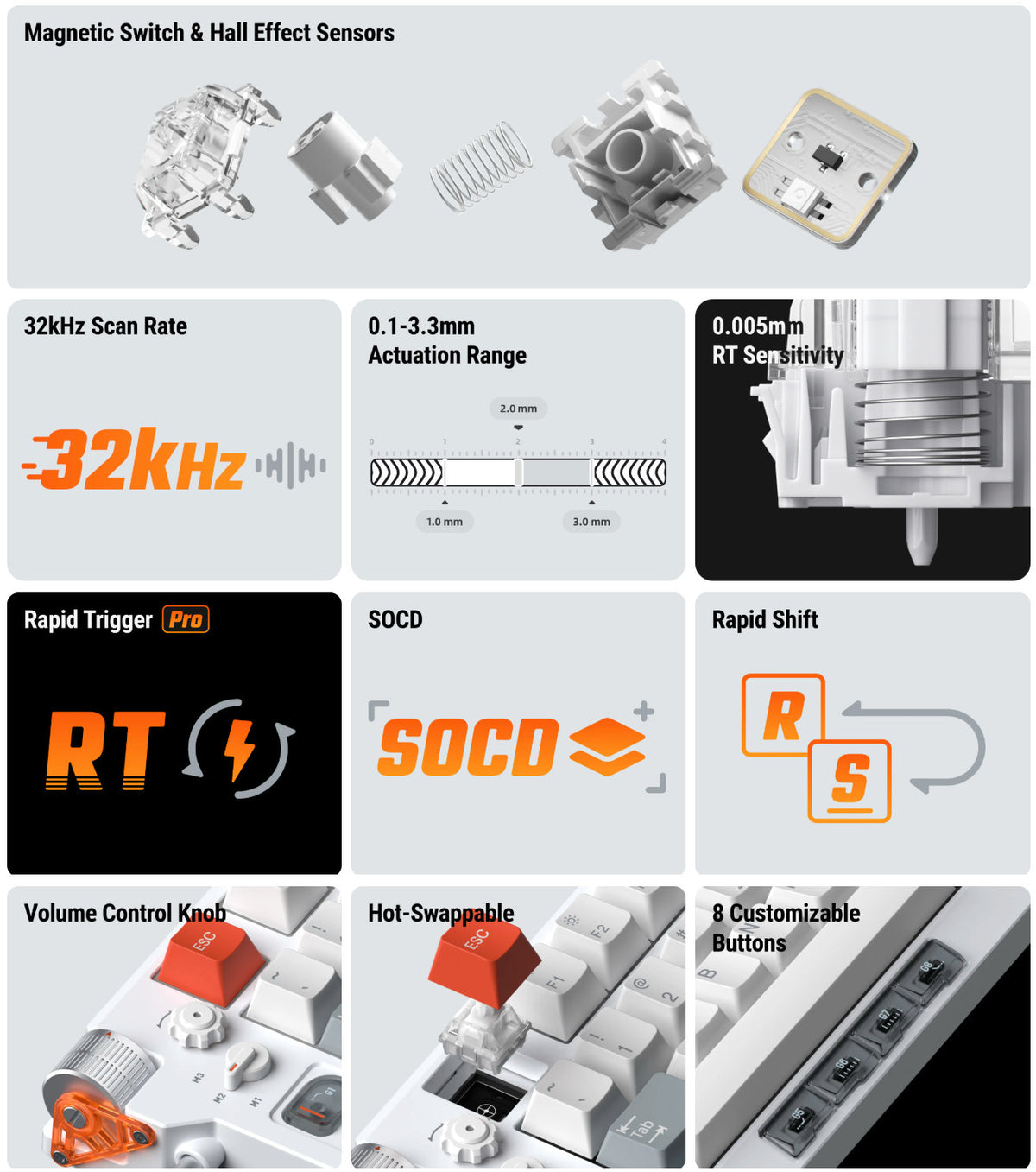

Before you get excited about the specs, know this up front: the Field75 HE V2 is wired-only — no battery, no Bluetooth — and that's the trade you make for genuinely absurd performance numbers (8,000Hz polling, a 32,000Hz scan rate, 0.45ms latency) that no wireless board currently matches. It runs NuPhy's new magnetic Jade Dragon-N switches (or the more affordable Magnetic Silver) with fully adjustable actuation down to 0.1mm and Rapid Trigger reset as low as 0.005mm, so you're not stuck with a fixed actuation point anymore — you're tuning one.
V2's real upgrade over the original Field75 HE is hot-swappable sockets, so a bad switch, or just a change of heart, doesn't mean sending the whole board back. Despite the gaming-first spec sheet, independent lab testing on the original model clocked it at a surprisingly office-safe ~40dBA, and the same dampening stack (dual Poron layers, aluminum plate, silicone sheet) carries over here. Eight dedicated macro buttons, a volume wheel, and a real RGB knob round out the control surface, though customization runs through NuPhy's own web app (Chromium browsers only — no Firefox, no QMK/VIA) rather than open firmware. If you want wireless first and gaming second, look elsewhere in the lineup; this one's for people who'd trade the cord for the reaction time.
Specs
| Spec | Detail |
|---|---|
| Layout | ANSI 75%, 83 keys |
| Connectivity | Wired only (USB-C) — no wireless, no battery |
| Switch type | Hall Effect / magnetic — Magnetic Silver (linear) or Magnetic Jade Dragon-N (linear, flagship) |
| Actuation range | Adjustable, 0.1–3.5mm (Silver) or 0.1–3.2mm (Jade Dragon-N) |
| Rapid Trigger reset | As low as 0.01mm (Silver) or 0.005mm (Jade Dragon-N) |
| Switch force | ~33g initial / ~45g end (Jade Dragon-N, independently measured — magnetic switches have a variable curve, not one fixed spec) |
| Switch lifespan | Up to 150 million keystrokes (no mechanical contact wear) |
| Hot-swap sockets | Yes — new for V2 (original Field75 HE wasn't hot-swappable) |
| Extra HE features | Dynamic Keystroke (up to 4 actions per key), Rapid Trigger Pro, SOCD handling, 3 onboard memory profiles |
| Performance | 8,000Hz polling · 32,000Hz scan rate · ~0.45ms total latency · Nu2-8K-D-2505 MCU (144MHz) |
| Controls | 8 dedicated macro buttons, RGB gear knob, volume scroll wheel |
| Mounting | Top mount, aluminum plate, silicone dampening + dual Poron foam layers |
| Stabilizers | Plate-mounted, clip-in |
| Case material | ABS top and bottom |

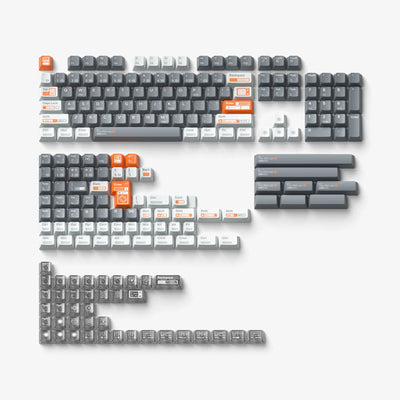

| Keycaps | Cherry profile, double-shot PBT |
| Backlight | South-facing RGB, 20 modes |
| Software | NuPhyIO web app (Chromium-based browsers only — no QMK/VIA) |
| Dimensions | 372.3 × 142.8 mm · 21.0mm front height / 40.4mm rear height |
| Weight | 1,205 g |
| OS support | Windows, macOS, Linux, Android, iOS |
| In the box | Keyboard, 1.5m USB-C-to-USB-C cable, USB-C-to-USB-A adapter, keycap/switch puller, spare keycaps, quick guide |
Video Review
1-Year Warranty on All Keyboards
All keyboards include a 1-year limited warranty covering factory defects to ensure your purchase is protected and worry-free.
