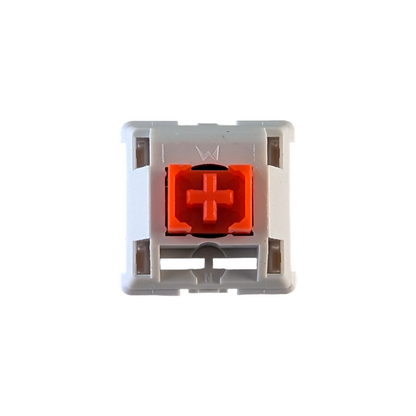

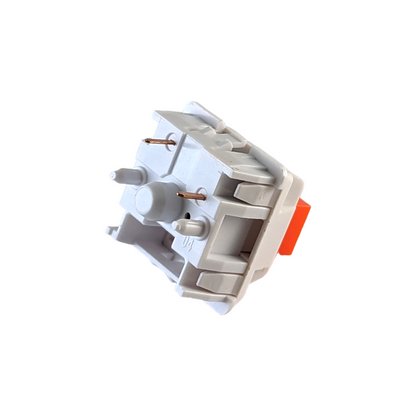

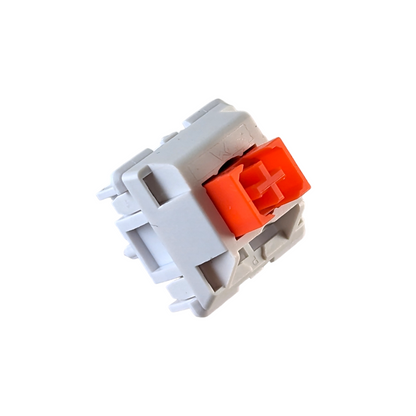

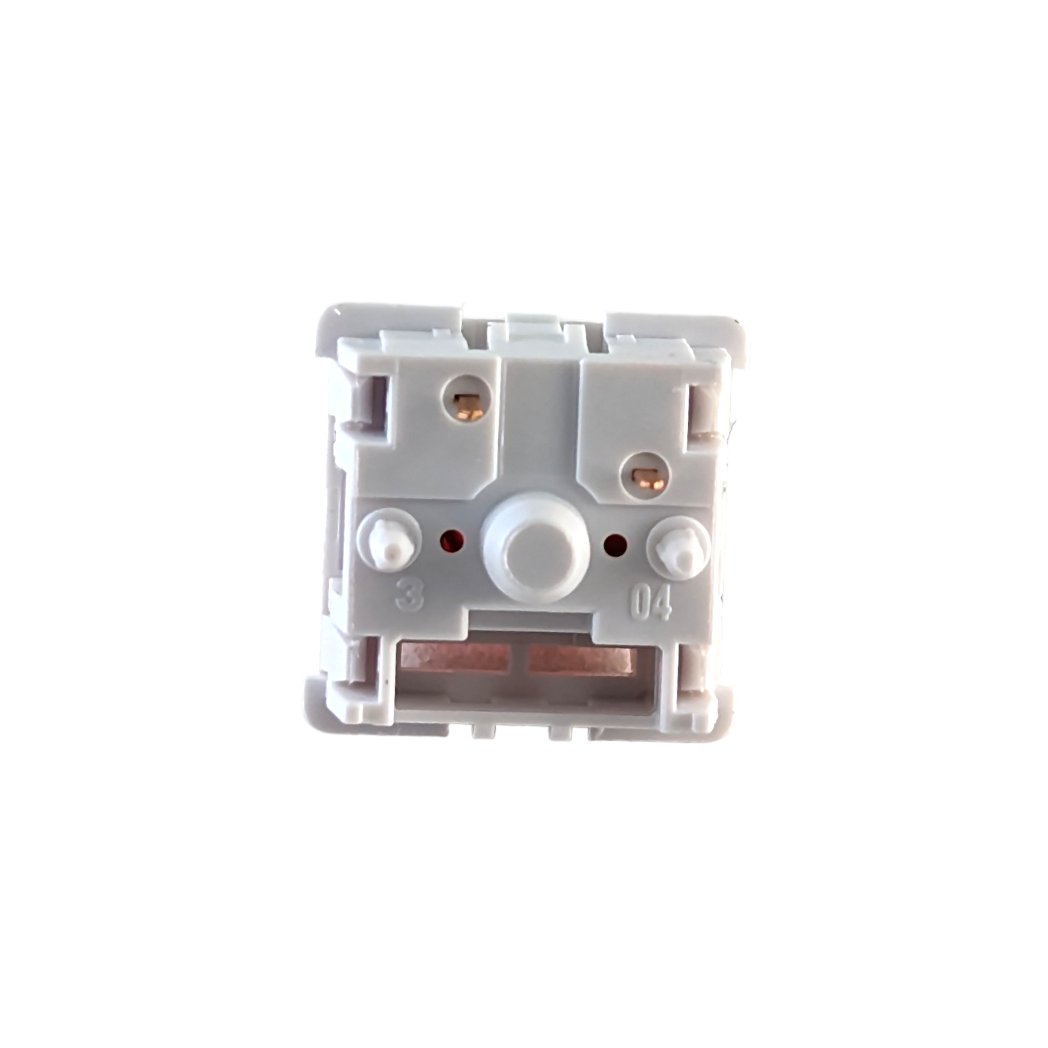

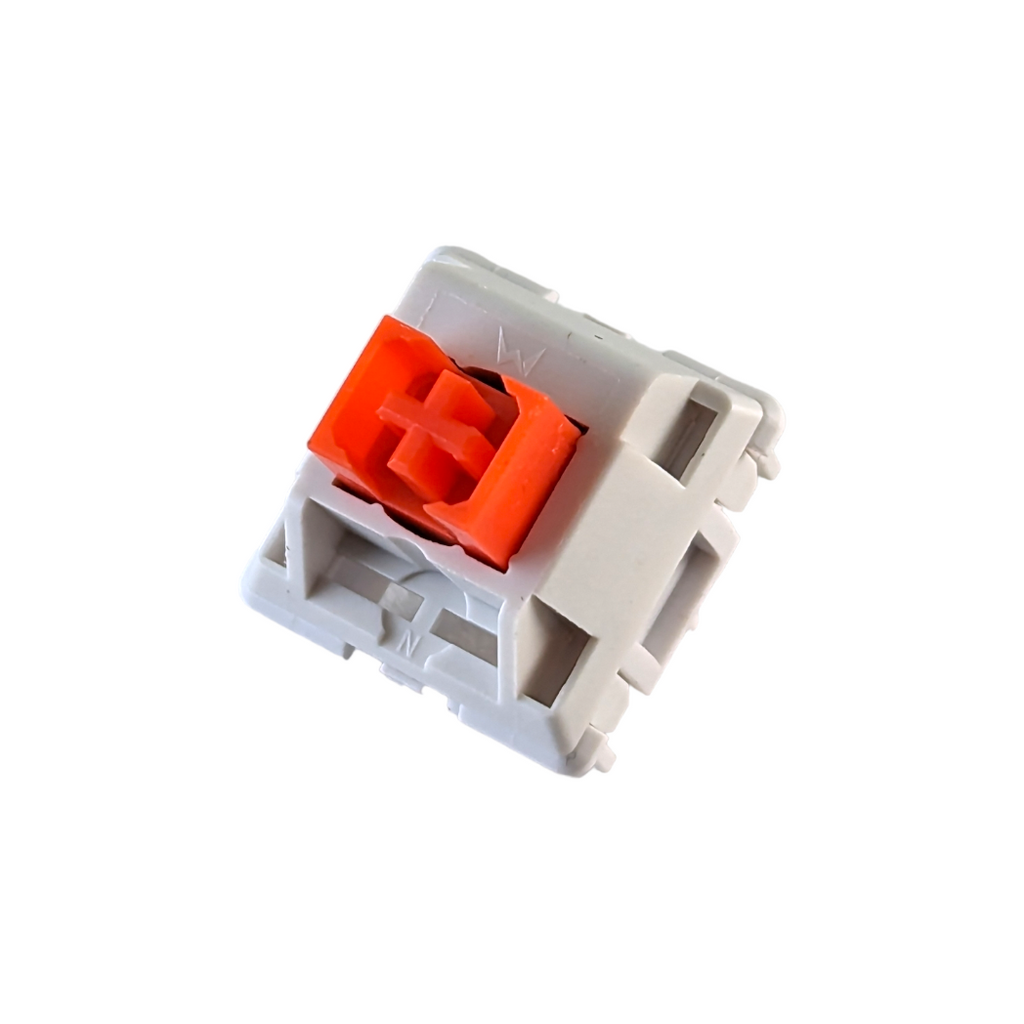

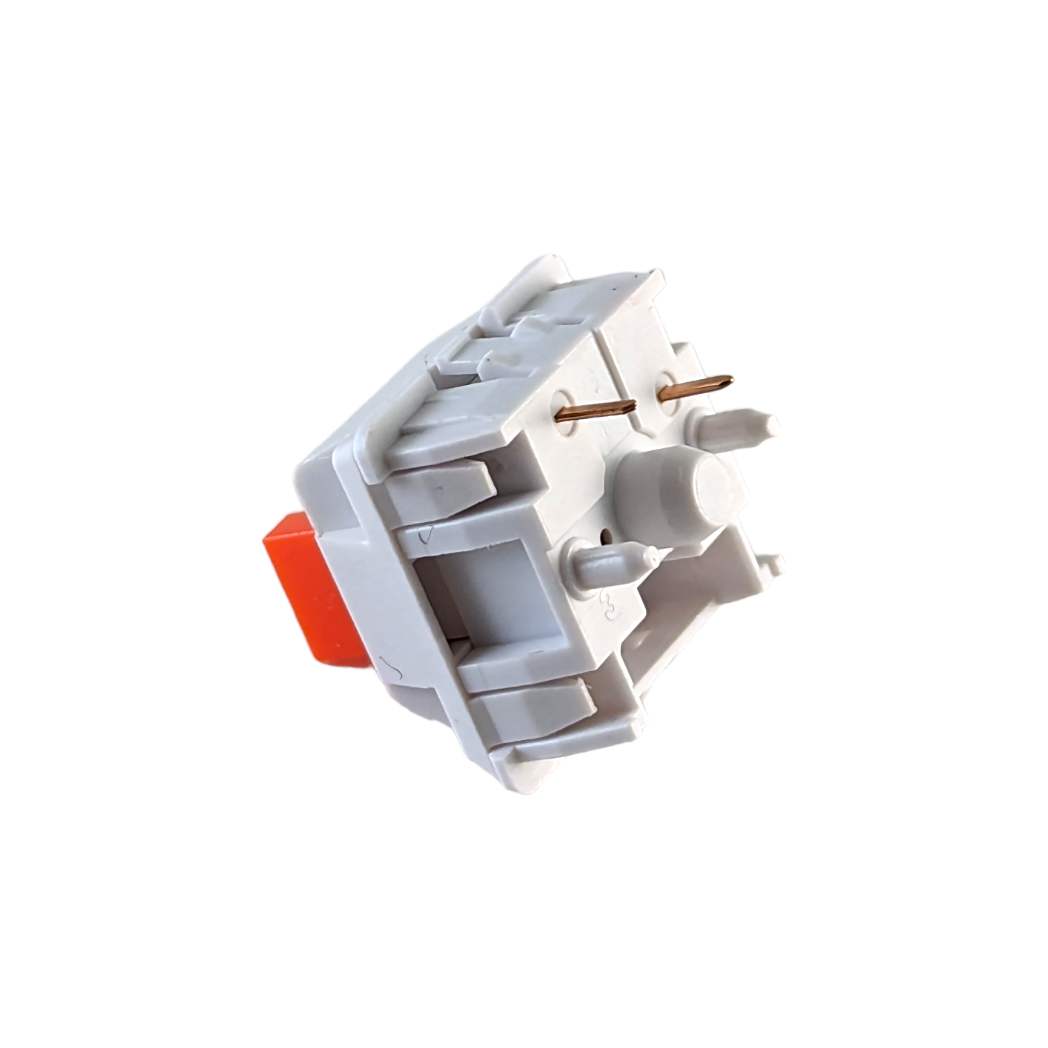

WS Wuque Studio Red Linear Switches



The popular Wu Que Studio offers keyboard enthusiast which more options high quality options for their custom mechanical keyboards that compete against the industry leaders like Cherry MX, kailh, ttc and Gateron. WS's Red linear switch offers 67g of bottom out force paired with a 22mm double action spring makes for a smooth feel and great sound profile with above average factory lube out of the box.


  • Top Housing: Nylon
  • Bottom housing: Nylon
  • Stem: POM in red
  • Total Travel:3.80士0.3mm
  • Pre-travel:2.00士0.5mm
  • Bottom out force:67g
  • Spring length: 22mm
  • Double Stage Spring
  • 5 pin
  • Lubing:Factory lubed

Sound Test

Optional: Hand Lube and Filming Service

  • Price:
    • Hand Lubed or Filmed - $0.39 per switch
    • Hand Lubed & Filmed - $0.69 per switch
  • We use Krytox 205g0, Krytox 105 and TriboSys 3203 depending of your switch type.
  • We use polycarbonate clear .015mm or .013mm film depending on switch brand.
  • Depending on order volume, require 2 - 7 additional business days.
